Price:
USD 200.00-200.00
Delivery
FOB
Minimum order quantity
4
Quantity:
  • 2.4G Wi-Fi Transmission Rate:300 Mbps
  • Max. LAN Data Rate:867Mbps
  • Standards And Protocols:Wi-Fi 802.11ac
  • Standards And Protocols:Wi-Fi 802.11b
  • Standards And Protocols:Wi-Fi 802.11g
  • Standards And Protocols:Wi-Fi 802.11n
  • Wi-Fi Supported Frequency:2.4G & 5G
  • Wi-Fi Transmission Standard:802.11ac
  • Wired Transfer Rate:10/100/1000Mbps
  • With Modem Function:No
  • Products Status:Stock
  • Type:Wireless
  • Application:Soho
  • Function:Firewall
  • Function:Voip
  • Function:QoS
  • Function:VPN
  • LAN Ports:4
  • WAN Ports:1 x10/100/1000Mbps
  • Place of Origin:CN;ZHE
  • Certification:CE, FCC
  • Brand Name:Wisnetworks
Product Description

2.4G&5G dual band 1167Mbps 11ac wifi router Airmesh

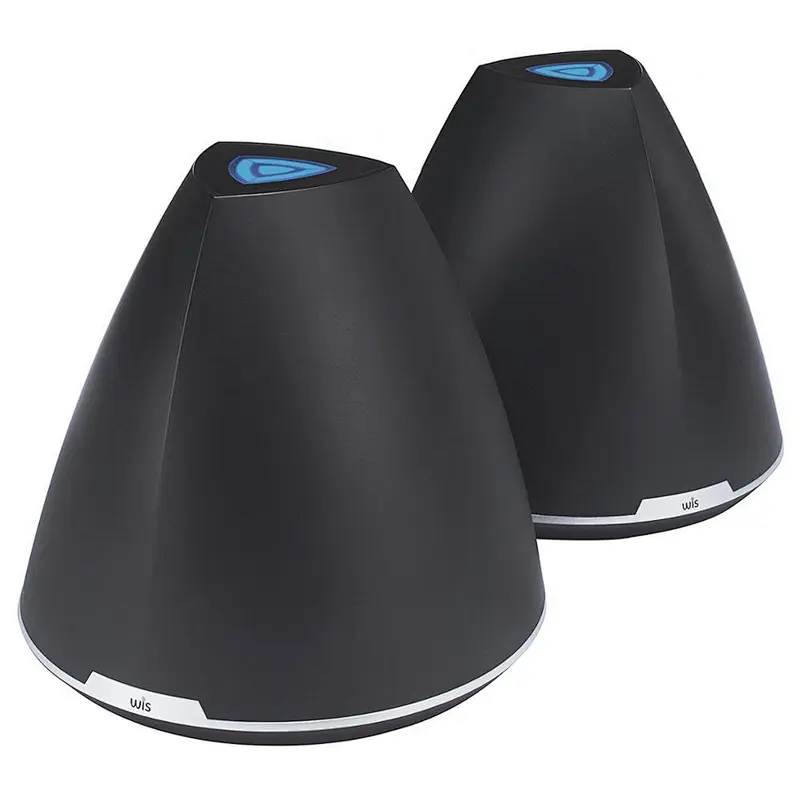

Mesh system is composed by 1 router and 1~3 satelite routers
2.4GHz & 5GHz WiFi-Dual band, 300 + 867 Mbps speed

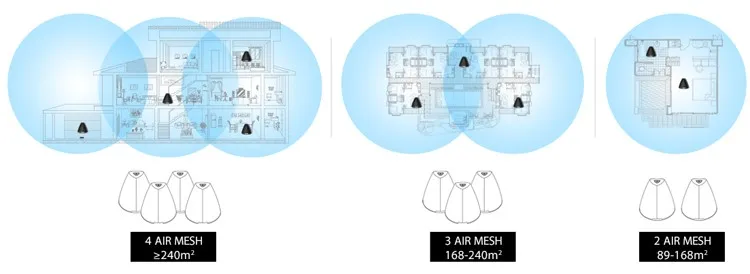

Suitable for different house layout

With different quantity of satelite routers, the mesh system can be suitable for different size of houses.

Features

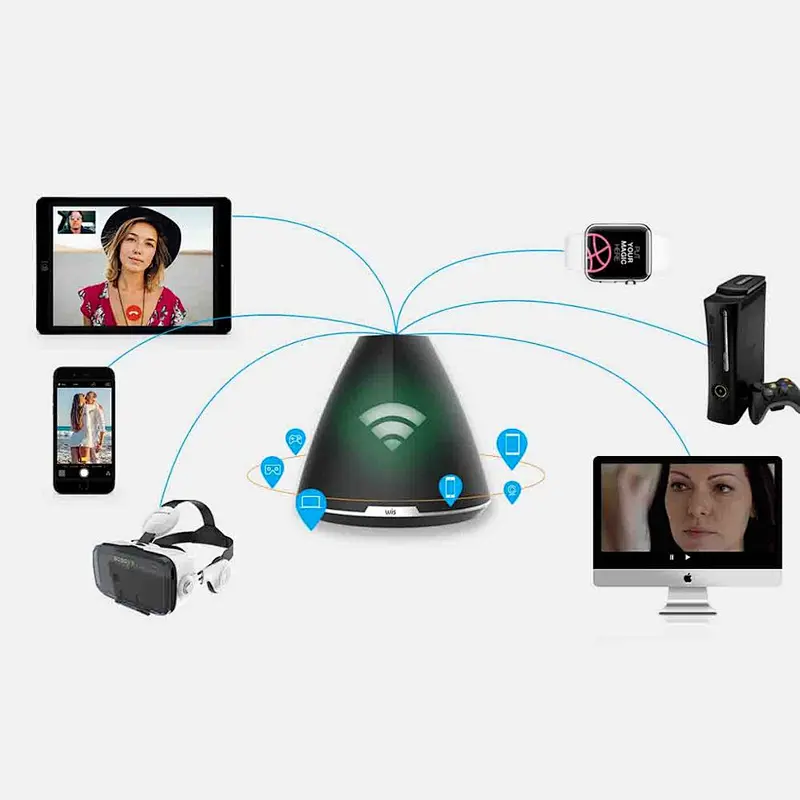

Multiple device cuncurrent online

A couple of Airmesh (1+1) is capable of carring 256 cuncrrent online devices. The more setelite routers, the more online users can be carried into the whole home Wi-Fi mesh system. Never worry about the Wi-Fi experience when you prepare a party at home.

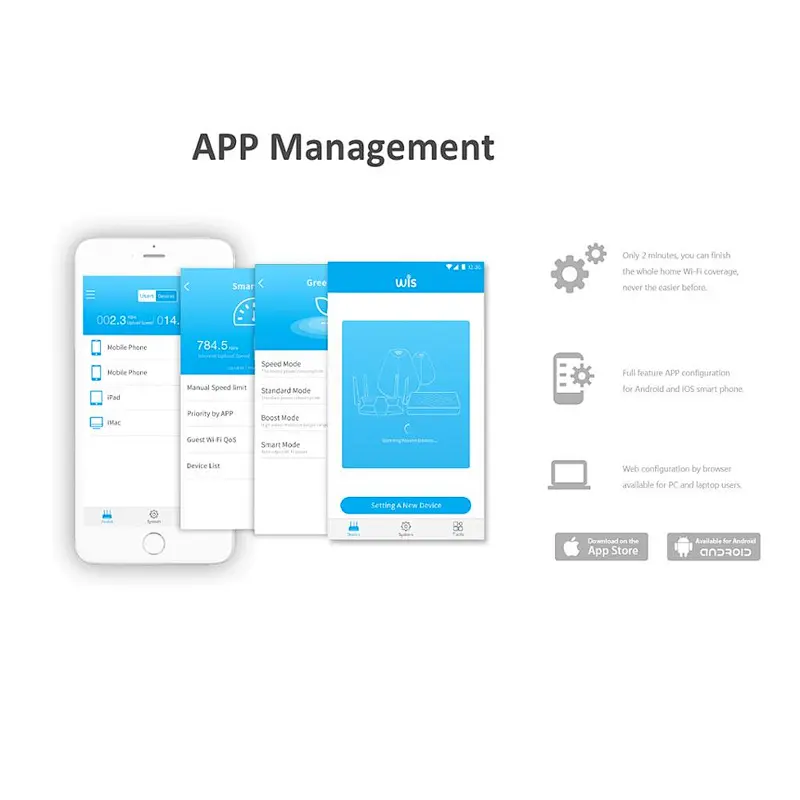

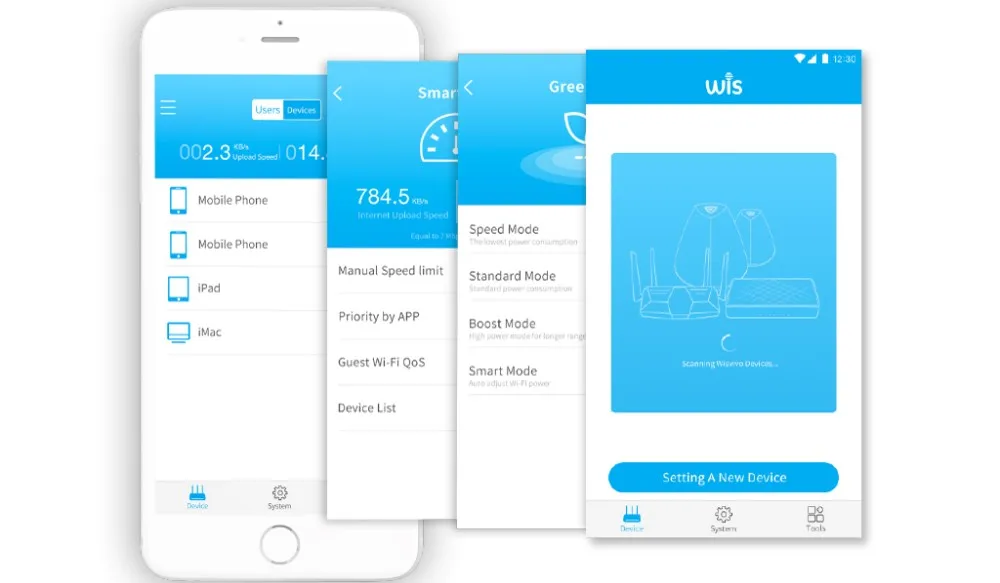

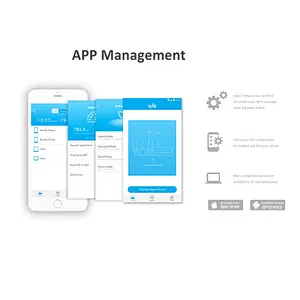

APP management

We provide powerful APP to run the Airmesh, including:
- Filter options to move out advertisement and any other unhealty connection
- Inteligent control to manage the individual Wi-Fi speed and on-line time, etc.
- adjustable output power to protect impressionable family members like pregnet women

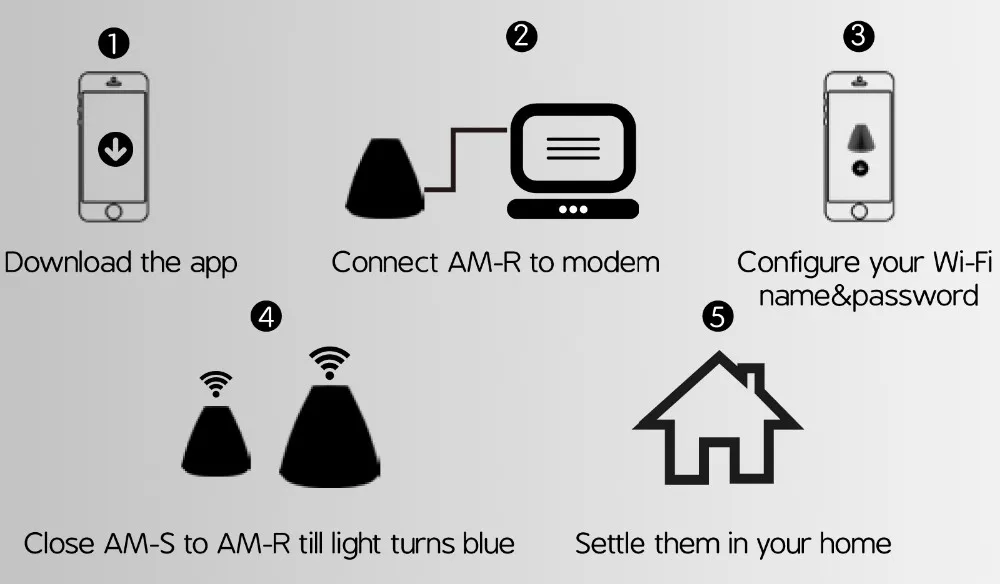

Intuitive setup steps

1. Downlaod the APP
2. Connect AM-R to modem
3. Configure your WI-Fi name and password
4. Close AM-S to AM-R till light turns blue
5. Settle them in your home

Specification
Wireless Features
Wireless Standards
- IEEE 802.11a/n/ac, 5GHz - IEEE 802.11b/g/n, 2,4GHz
Frequency
- 2.4GHz and 5GHz
Speed
- 5GHz: Up to 867Mbps - 2.4GHz:Up to 300Mbps
Tx Power
-< 25dBm
Wireless Bridge /Repeater
-Repeat Signal from other Wi-Fi System
Rx Sensitivity
- 5GHz,6Mbps: -96dBm,HT20@MCS9: -71dBm, HT40@MCS9: -66dBm, HT80@MCS9: -63dBm
-- 2.4GHz,54M: -77dBm,HT20@MCS15: -74dBm, HT40@MCS15: -72dBm
Wireless Security
- WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
Hardware Features

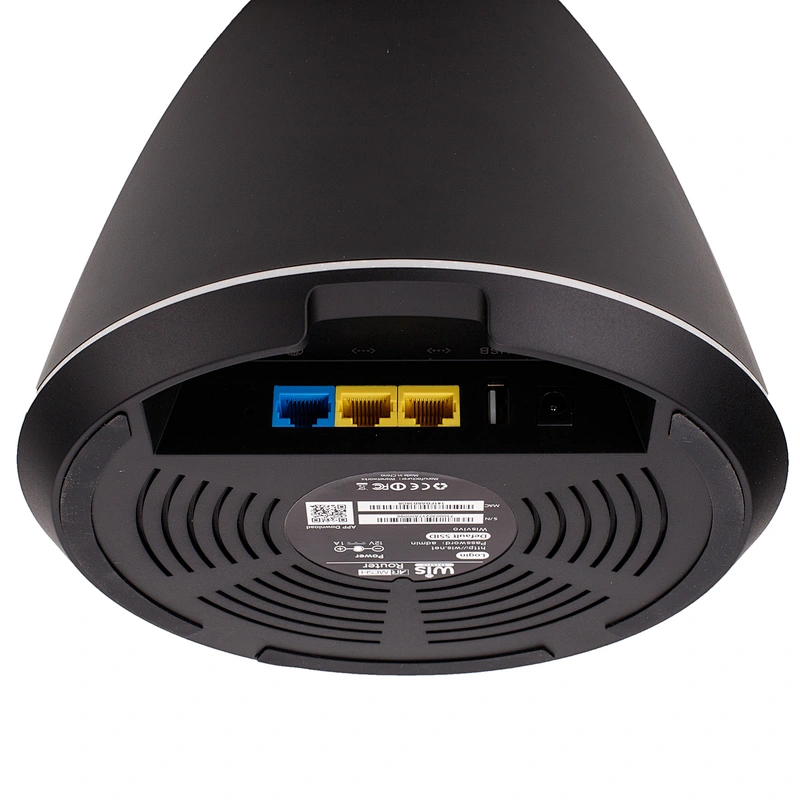

Interface
- 4*10/100/1000Mbps LAN Ports                      - 1*10/100/1000Mbps WAN Port
- 1*USB 2.0 Port -1*TFMbps WAN Ports          - 1*USB 2.0 Port -1*TF

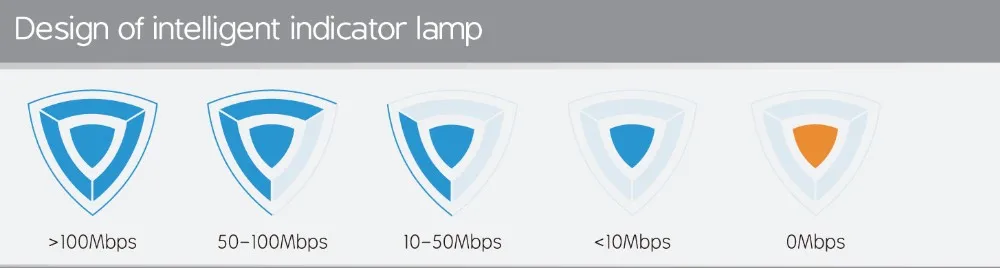

LEDs
- Power, 2.4GHz, 5GHz, WAN, LAN1, LAN2, LAN3, LAN4
Power
- 12VDC / 1A
Antenna
Internal 2.4GHz 6dBi and 5GHz 8dBi omni-antenna
Dimension
- 185*165*195mm
Environment
- Operating Temp: 0°C ~ 40°C                      - Operating Humidity: 10%~90% non-condensing
Software Features
DHCP
- DHCP Server / Client
QoS
- WMM, Bandwidth Control
Access Control
- MAC Address filter
Forwarding
- Port Forward / DMZ / UPnP
USB Sharing
- LAN File Sharing
Parental Control
- MAC / Time / Domain
Management
- Web interface / Smart Phone*Remote management
System Requirement
- Microsoft Windows XP, Vista or Windows 7, Windows 8, MAC OS, UNIX or Linux
Packing

Package Content

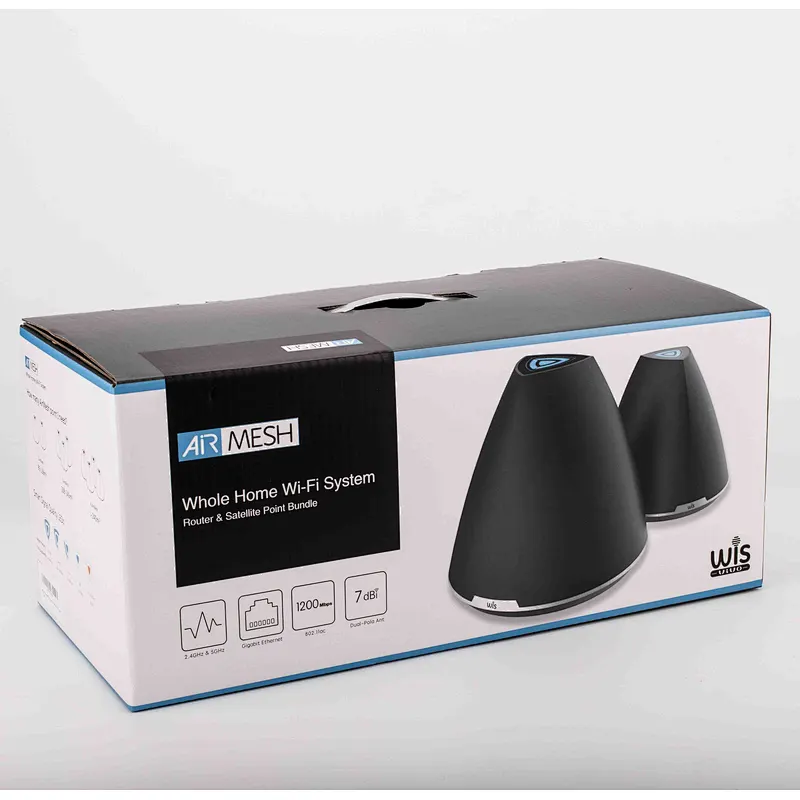

-1*Rother                                       -1*satelite router
-2* Power Supply Unit               -2*Ethernet Cable Quick                                  -1*Setup Guide

Package Size

4pcs/9kg/49*47*46CM

Our Company

Company Profile

Zkong is communication Technology manufacturer founded in 2006, Hangzhou city and is commited to providing wireless 3C products. We have 30000 squre meters factory and more than 400 emploee, with excellent sales team and RD team. Moreover, we deeply cooperate with Alibaba Corp. to creat smart hardware combined cloud solution.
